What is the Difference Between Distillation and Rectification?

Distillation VS Rectification

What is Distillation?

Distillation is a unit operation that can be used to separate homogeneous liquid mixtures. It utilises the different volatility of the components of the mixture to be separated. Volatility refers to the tendency of a substance to pass from the liquid phase into the gas phase. Examples of volatile liquids include acetone, alcohol and petrol. Distallation Plant Details

What is Rectification?

Rectification is an application of distillation. It is used for substances that are required in high purity and/or large quantities, for example to fractionate crude oil. If the distillate obtained during distillation is distilled again, a new distillate is obtained with an even higher concentration of volatile components. As the procedure is repeated, the concentration of volatile components in the distillate increases on each occasion.

In practice, this multi-stage distillation process is carried out in the form of countercurrent distillation (rectification) in a column.

Key Differences between Distillation and Rectification

● Purpose

The primary purpose of distillation is to separate components based on their boiling points, whicle rectificatio aims to enhance the purity of a substance through repeated distillation cycles.

● Process Variation

While both distillation and rectification involve vaporization and condensation, rectification emphasizes repeated cycles of this process to achieve higher purity levels.

● Purity Levels

Distillation results in relatively lower purity compared to rectification. Rectification achieves higher purity levels through its multiple distillation steps.

Now we will explain distillation and reactification seperately in design technology and principle&process.

Distillation Design Technology

By using the difference in the volatility of the components in the liquid mixture, the liquid mixture is partially vaporized and the vapor is partially condensed, so as to achieve the separation of the components it contains. It is a unit operation that belongs to mass transfer separation. Widely used in oil refining, chemical, light industry and other fields.

Distillation Technology

The principle is based on the separation of a two-component mixture. The material liquid is heated to make it partially vaporized, and the volatile components are concentrated in the vapor, and the non-volatile components are also concentrated in the remaining liquid, which achieves the separation of the two components to a certain extent. The greater the difference in volatility of the two components, the greater the degree of enrichment described above. In industrial distillation equipment, a partially vaporized liquid phase is brought into direct contact with a partially condensed gas phase for vapor-liquid interstitial mass transfer. As a result, the non-volatile components in the gas phase are partially transferred to the liquid phase, and The volatile components are partially transferred to the gas phase, that is, partial vaporization of the liquid phase and partial condensation of the vapor phase are achieved at the same time.

Distillation Principle and Operation Process

Simple distillation is a batch operation process. The feed liquid is added to a distillation kettle, and the liquid is heated and boiled under constant pressure to continuously vaporize the liquid. The steam generated one after the other is cold-leached and used as the top product, where the volatile components are relatively enriched. During the distillation process, the volatile matter concentration of the liquid in the kettle continuously decreased, and the volatile matter concentration in the steam also decreased accordingly.

To achieve high-purity separation, rectification can be used. Distillation is the most commonly used distillation method. One part is returned to the top of the column, which is called reflux liquid, and the rest is continuously discharged as the top product (distillate). In the upper part of the tower (above the feeding position), the countercurrent contact and the material and energy transfer are performed between the rising steam and the reflux liquid. The bottom of the column is equipped with a reboiler (distillation kettle) to heat the liquid to produce steam. The steam rises along the tower, contacts the falling liquid countercurrently and conducts material energy transfer, and the bottom of the tower continuously discharges part of the liquid as the bottom product. The rising steam is partially condensed many times, and the temperature gradually decreases. The concentration of volatile component A gradually increases. The falling liquid is partially gasified many times. The temperature gradually increases, and the concentration of non-volatile component B gradually increases. The concentration gradually decreases, the temperature distribution in the tower gradually decreases from the bottom to the top, and the concentration of the A component gradually increases from the bottom to the top. In the rectification section, the lower part of the column has completed the concentration of the heavy components in the descending liquid, that is, the light component is proposed, so it is called the stripping section.

In such a column, a two-component mixture can be continuously separated High purity light and heavy two components. It can be seen that the difference between rectification and distillation lies in 'reflux'. Reflux is a necessary condition for gas and liquid contact mass transfer.

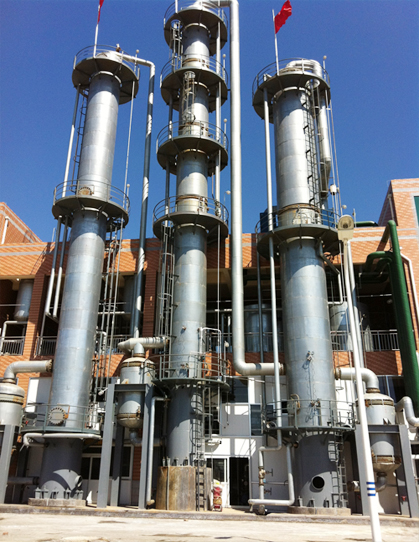

Rectification Principle and Operation Process

The liquid mixture to be separated (feed) is fed to the column and partially evaporates on its way to the bottom of the column where it is heated to boiling. The vapour produced moves upwards inside the column, exits it at the top and is condensed. Part of the condensate is carried away as top product. The remainder flows back into the column and moves downwards as liquid phase.

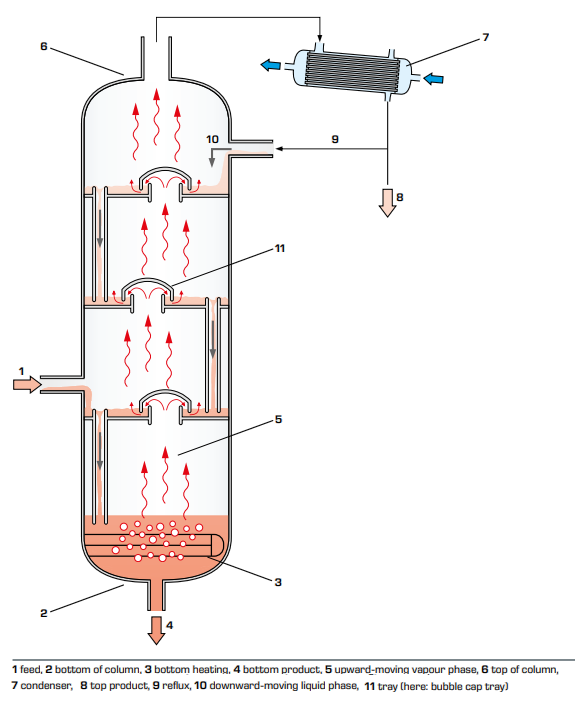

Due to column internals, such as bubble cap trays or random packings, the downward-moving liquid phase is subjected to an intensive exchange of heat and material with the upward-moving vapour phase. The less volatile components of the vapour phase condense and increase in concentration in the liquid phase. At the same time, the condensation heat released evaporates the more volatile components of the liquid phase. These processes in the column increase the vapour phase concentration of volatile components moving from the bottom to the top of the column. The liquid phase concentration of less volatile components increases in the opposite direction, from the top of the column to the bottom.

Rectifying Section vs Stripping Section

A rectification column is divided into two functional zones:

Rectifying Section (Above Feed)

• Enriches light component in vapor phase

• Uses reflux liquid for purification

Stripping Section (Below Feed)

• Removes light component from heavy liquid

• Driven by reboiler vapor

Temperature Profile:

• Bottom → Highest temperature

• Top → Lowest temperature

Composition Profile:

• Light component increases upward

• Heavy component increases downward

This countercurrent mass transfer mechanism is absent in simple batch distillation.

Types of Distillation and Rectification

Understanding the different types of distillation helps clarify their usage scenarios:

1. Simple Distillation
    Used when the boiling points of components differ significantly (e.g., >25°C). No trays or packing are needed.

2. Fractional Distillation
    Used when boiling points are close. Requires a column filled with trays or packing to enhance separation.

3. Vacuum Distillation
    Conducted under reduced pressure to lower boiling points. Ideal for thermally sensitive compounds.

4. Azeotropic and Extractive Distillation
    Used to break azeotropes by adding solvents or third components.

5. Reactive Distillation
    Combines chemical reactions and distillation in the same unit.

6. Rectification (Continuous Fractionation)
    Involves multiple stages of vapor-liquid equilibrium using reflux, producing highly pure top and bottom products.

Equipment and Column Design

In both distillation and rectification, equipment configuration plays a critical role:

• Tray Columns
   Use sieve trays, valve trays, or bubble cap trays to increase contact between rising vapor and descending liquid.

• Packed Columns
   Use random or structured packings (e.g., Raschig rings, Pall rings) for high surface area and energy efficiency.

• Reboiler
   Located at the bottom to vaporize the liquid feed using external heat.

• Condenser
   Located at the top to condense rising vapor into liquid.

• Reflux Drum
   Stores condensed liquid. A portion is sent as product, the rest returned as reflux to improve purity.

Operation Modes: Batch vs. Continuous

• Batch Distillation
   Operates in cycles
   Suitable for lab-scale or flexible production
   Less efficient for large volumes

• Continuous Distillation (Rectification)
   Feed and product streams operate non-stop
   Ideal for petrochemical, beverage, and pharmaceutical industries
   Consistent product quality with energy optimization

Thermodynamic Principles Behind Separation

• Raoult's Law
   The partial vapor pressure of a component in a mixture is proportional to its mole fraction and vapor pressure.

• Dalton’s Law
   The total pressure of a gas mixture equals the sum of the partial pressures of each component.

• Relative Volatility (α)
   The ratio of vapor pressures of two components determines how easily they can be separated. The higher the α, the simpler the separation.

Reflux Ratio and Its Engineering Significance

In rectification systems, the reflux ratio (R) is one of the most critical design and operating parameters.

$$R = \frac{L}{D}$$

Where:

• L = liquid returned to the column (reflux)

• D = distillate withdrawn as product

Why Reflux Ratio Matters

• Low R → lower energy consumption, but lower separation efficiency

• High R → higher purity, but increased reboiler duty and condenser load

• Minimum Reflux Ratio (Rmin) → theoretical lowest reflux for separation (infinite stages required)

Industrial systems typically operate at:

$$R = 1.2 \sim 1.5 \times R_{min}$$

This balances capital cost (column height) and operating cost (energy usage).

Economic Trade-Off

This economic optimization is a fundamental reason why rectification differs from simple distillation.

Theoretical Stages and McCabe–Thiele Method

Rectification performance is governed by the number of equilibrium stages.

Fenske Equation (Minimum Stages)

$$N_{min} = \frac{\ln \left( \frac{x_D(1-x_B)}{x_B(1-x_D)} \right)}{\ln \alpha}$$

Where:

• $x_D$ = mole fraction in distillate

• $x_B$ = mole fraction in bottoms

• $\alpha$ = relative volatility

McCabe–Thiele Graphical Method

In binary systems, the number of theoretical stages can be graphically determined using:

• VLE curve

• Operating lines

• Feed line (q-line)

This method visually demonstrates:

• The rectifying section (above feed)

• The stripping section (below feed)

Simple distillation does not involve stage-wise vapor-liquid equilibrium analysis. That is a key technical difference.

Column Internals Selection: Tray vs Packed Columns

Both distillation and rectification may use columns, but continuous rectification requires optimized internals.

When to Choose Tray Columns

• High throughput

• Dirty or fouling feeds

• Large-diameter petroleum columns

When to Choose Packed Columns

• Vacuum distillation

• Heat-sensitive chemicals

• Fine chemical purification

• Energy efficiency priority



Energy Consumption and Optimization in Distillation and Rectification

Distillation and rectification are among the most energy-intensive separation processes in the chemical industry, accounting for approximately 40–60% of total plant energy consumption in many facilities.

Major Energy Consumers

The primary sources of energy demand include:

• Reboiler duty (vapor generation at column bottom)

• Condenser cooling load

• Reflux circulation and pumping power

• Heat losses due to insulation inefficiency

The reflux ratio directly impacts energy demand. Higher reflux increases separation efficiency but also increases reboiler and condenser loads.

Energy Loss Mechanisms

Energy inefficiencies typically arise from:

• Poor heat transfer performance

• Fouling in reboilers or condensers

• Excessive pressure drop

• Suboptimal operating reflux ratio

Proper column design and maintenance significantly reduce these losses.

Energy Optimization Strategies

Modern rectification systems apply several optimization techniques:

• Heat integration with upstream or downstream processes

• Multi-effect distillation to reuse latent heat

• Mechanical Vapor Recompression (MVR)

• Dividing wall column design

• Advanced process control systems to optimize reflux ratio and reboiler duty

Continuous rectification systems allow better steady-state energy optimization compared to batch distillation.

Energy Comparison: Distillation vs Rectification

Although rectification consumes more energy per unit time, it achieves higher purity and better long-term energy efficiency under continuous operation.

Environmental Impact

• VOC Emissions
   Volatile organic compounds released during distillation need to be captured to avoid pollution.

• Waste Heat
   Untreated waste heat can contribute to thermal pollution. Proper heat recovery systems are essential.

• Wastewater and Residues
   Bottom products may require further treatment, especially in pharmaceutical and chemical applications.

• Sustainability
   Energy-efficient designs and closed-loop systems are increasingly adopted to align with green chemistry principles.

Safety and Regulatory Compliance

Distillation and rectification processes involve high temperatures, flammable substances, and pressurized equipment.

Key Hazards:

• Overheating or overpressure

• Fire and explosion risks (especially in alcohol or solvent distillation)

• Corrosive or toxic chemicals

Compliance Standards:

• OSHA (Occupational Safety and Health Administration)

• EPA (Environmental Protection Agency) regulations on emissions

• ATEX/IECEx certifications for hazardous environments

• GMP compliance for pharmaceutical and food-grade applications

Common Operational Problems in Rectification Columns

Professional-level content often discusses failure modes:

Flooding

Excess vapor velocity prevents liquid downflow.

Weeping

Insufficient vapor flow allows liquid leakage through trays.

Entrainment

Liquid droplets carried upward with vapor.

Foaming

Surface-active compounds disturb mass transfer.

Simple distillation rarely encounters these multi-stage hydraulic problems.

Industrial Applications

Industrial Case Study: Ethanol Purification

Scenario:

Fermentation broth → 8–12% ethanol

Step 1: Simple Distillation

Output → ~90–95% ethanol

Step 2: Rectification Column

Output → 95–96% azeotropic ethanol

Further dehydration requires:

• Molecular sieve

• Extractive distillation

This demonstrates:

• Simple distillation cannot achieve high purity.

• Rectification is essential for industrial-scale ethanol production.

 Cost Comparison: Distillation vs Rectification

Economic Decision Logic

Choose simple distillation when:

• Small production scale

• Large boiling point difference

• No high purity requirement

Choose rectification when:

• Continuous production needed

• High purity required

• High throughput justified

• Long-term operational stability required

Conclusion: Distillation vs Rectification—Which One to Choose?

Distillation is ideal for basic separation tasks, especially when component volatility differs significantly. However, for high-purity, high-efficiency, and large-scale operations, rectification is the superior choice. Its use of reflux and multiple contact stages makes it indispensable in modern chemical engineering.

Companies investing in continuous production lines or high-value chemical processing will benefit most from rectification systems. Meanwhile, distillation remains cost-effective and practical for small-batch or initial separation tasks.

FAQ Section

Is rectification the same as fractional distillation?

Rectification is the continuous, industrial implementation of fractional distillation using reflux and multiple equilibrium stages.

Why is reflux necessary in rectification?

Reflux provides repeated vapor-liquid contact, increasing theoretical stages and improving purity.

Can simple distillation achieve 99% purity?

Only if the relative volatility is very high. Most industrial separations require rectification.

What determines column height?

The number of theoretical stages and tray/packing efficiency determine total column height.
