Formaldehyde is one of the main downstream products of methanol, and its consumption accounts for 27%, ranking first in the methanol consumption structure.
Since the production of formaldehyde began in the 1950s, China has become the first producer and consumer of formaldehyde in the world, with a production capacity of about 32000kt / A, but the actual output of formaldehyde in recent years is about 10000kt / A. From 2020 to 2021, the operating rate of domestic formaldehyde enterprises is basically about 15-55%, and the highest operating rate is 51.24% in late January 2021.
Formaldehyde is one of the important chemical raw materials, which is widely used in wood, textile, anti-corrosion and other industries. With the growth of demand for formaldehyde downstream products - POM, PF, methylal, 1,4-butanediol (BDO), diphenylmethane diisocyanate (MDI), pyridine and its compounds, the growth of consumption demand for formaldehyde for a long time also plays a positive role.
However, on the whole, after the rapid development in the early stage, China's formaldehyde industry has formed the current situation of "overcapacity, fierce competition and low efficiency". In order to seek new development and get rid of difficulties, enterprises must expand the downstream industrial chain and realize product diversification. The extension of downstream industrial chain can improve the comprehensive utilization level of resources, reduce the comprehensive production cost, realize the efficiency increase and emission reduction of enterprises, so as to enhance the profitability of enterprises, turn low profit formaldehyde enterprises into dynamic enterprises, and enhance the ability of enterprises to resist market risks, which will be a strong driving force to promote the sustainable development of the industry.
Hubei Sanli Fengxiang Technology Co., Ltd. has been committed to the extension of formaldehyde and formaldehyde downstream products, actively improve the comprehensive utilization rate of formaldehyde resources through the expansion of downstream industrial chain, effectively reduce the comprehensive production cost of formaldehyde enterprises, and promote the transformation and upgrading of formaldehyde industry. Hubei Sanli Fengxiang Technology Co., Ltd. successfully developed the industrialized production technology of high-value products downstream of formaldehyde - polymethoxydimethyl ether (Dmmn) and methyl methacrylate (MMA), and completed the construction of pilot plants.
Dmmn, the full name: Polymethoxy Dimethyl Ether, Polymethoxy-methylal and etc, with the abbreviation of DMMn、PODE, the molecular formula: CH3O(CH2O)nCH3（n≥2).
See Table 1 for the main physical and chemical property indexes of Dmmn series single component products.
Table 1 Main physical and chemical property indexes
|化合物Chemical Compound||沸点（℃）Boiling point（℃）||氧含量Oxygen content||十六烷值Cetane number||闪点（℃）Flashing point（℃）||密度（G/mL）density（G/mL）|
Diesel Additive Haze Reducing Agent
Compared with Europe and North America, the quality of vehicle diesel in China is relatively low, which is mainly reflected in the content of sulfur, cetane number and aromatics. The average cetane number of vehicle diesel in China is about 45, and some light diesel can only reach 40, so it is difficult to improve the performance of diesel engine. Although China issued a new vehicle diesel standard (GB19147-2009) in 2010, it is difficult to produce qualified vehicle diesel by the existing oil refining process. The high content of aromatics leads to the decline of cetane number, incomplete combustion and serious automobile exhaust pollution.
Dmmn is internationally recognized as a new environmentally friendly fuel blending component to reduce fuel consumption and reduce flue gas emission. It has high cetane number (80 ~ 100) and good low-temperature fluidity. It can improve the combustion performance of diesel and reduce the emission of automobile exhaust. Its physical properties are similar to that of diesel. When it is mixed into diesel, there is no need to reform the fuel supply system of vehicle engine.
The cetane number of Dmmn is the highest among several oxygenants, which is not only higher than diesel, but also higher than dimethyl ether, which is more than twice that of dimethyl carbonate. Therefore, Dmmn can be used not only as oxygenant, but also as cetane number improver. The cetane number of methanol and ethanol is very low.
Table 2 Comparison of properties between common oxygenants and diesel oil
|增氧剂名称Oxygenants name||分子量Molecular weight||密度g/mLDensityG/ml||沸点℃Boiling point℃||互溶性Intersolubility||十六烷值Cetane number||氧质量分数%Oxygen mass fraction||低热值MJ/kgLow calorific valueMJ/kg|
|甲基异丁基醚Methyl isobutyl ether||88.14||好Good||53||18.2|
Many Chinese companies and abroad have successively developed and studied this product as a diesel additive. The test and application research show that the cetane number of diesel increases by 5-30% after adding 8-12% Dmmn. For every 3% of this component increased in the national standard diesel, the cetane number of diesel can be increased by one unit; Moreover, with the addition of 20% DMMn diesel, the smoke can be reduced by 80% ~ 90% and NOx can be reduced by 50%. At the same time, the thermal efficiency is higher than that of diesel alone.
The freezing point of DMMn can reach below - 30 ℃. Blending with diesel or other fuels can reduce the grade of diesel (0# diesel blending with 20% DMMn can reduce its freezing point to - 6 ℃), and due to the high oxygen content of DMMn, the blended diesel or fuel is especially suitable for high cold and anoxic areas. The experimental research shows that the lubricating performance of diesel oil is significantly improved after adding appropriate proportion of DMMn, which can replace the imported diesel anti-wear agent and solve the problem of poor lubricity of low sulfur diesel oil.
Table 3 Vehicle Test Data after Adding DMMn
|技术指标Technical index||样品名称Sample name|
|实际最大轮边功率Actual maximum wheel power||39.88KW||43.15kw||42.79kw||42.66kw|
Table 4 Stand Test Data after adding DMMn
|试验项目Testing items||排放物Discharge||国Ⅲ柴油National III diesel||10%DMMn调和柴油10% DMMn Blended diesel||偏差%deviation|
|备注：偏差=（10%DMMn调和柴油-国Ⅲ柴油）/国Ⅲ柴油）×100%Remark: deviation=(10% DMMn blended diesel-national III diesel)/national III diesel)|
DMMn, in which DMM2, DMM3, DMM4 boiling points are 102~202℃, which is in the boiling range of medium boiling point solvent (100 ~ 150 ℃) and high boiling point solvent (100 ~ 200 ℃). And the molecular structure of DMMn is similar to that of alcohol ethers, which can be called as alcohol ethers or ether solvents.
Table 5 General performance table of solvent
|组成Component||分子量Molecular weight||沸点℃Boiling point℃||凝点℃Condensation point||闪点℃Flashing point||密度g/mLDensityg/mL||粘度cPviscosity||溶解度参数（J/mL）1/2Solubility parameters（J/mL）||挥发性volatility|
DMM2-4 is an ether solvent, colorless and transparent, with slight ether flavor, adjustable distillation range, moderate volatility and good stability. It can be used as an environmental friendly solvent (D20 ~ D70) to partially or completely replace aromatic hydrocarbons, alcohol ethers and their acetate esters, ketones, esters and other solvents. It has remarkable economic benefits and broad application prospects.
DMM2-4 has far more solubility than aromatics. It can dissolve resin (polyester, acrylate, epoxy resin, etc.) oil and wax. Its solubility is stronger than ether and acetone. It is a good substitute for aromatic solvents (toluene, xylene), DMF, halogenated hydrocarbons and ether solvents; DMM2 alone or selectively compounded with other conventional solvents can be widely used in the fields of rubber, adhesive, medicine, reclaimed rubber utilization, adhesive preparation, metal cleaning agent, perfume, oil for pharmaceutical intermediates, dry cleaning agent, printing and dyeing auxiliaries or preparation of paint diluent; Due to its low biological toxicity, the homologue methylal is of low toxicity (acute toxicity inhalation-rats LC50: 47g / m3; inhalation-mice LC50: 57g / m3 / 7h), and does not contain sulfur, lead, aromatics and other toxic and harmful substances, which can be biodegradable. Therefore, it can be used as a clean and environmentally friendly solvent to reduce harmful substances in paints, coatings and pesticides, Reduce health hazards to human body and serious pollution to atmosphere and soil. DMM2 ~ 4, 30 ~ 40% (W%) dissolved in water at room temperature, 4 ~ 5% (w%) of water dissolved in products, oil-water amphiphilic, is an ideal pesticide solubilizer, which can improve the mutual solubility of pesticide active components and water, and can even be directly used as emulsifiable concentrate; It can also be used as a substitute for organic solvent components in water-based paint (including emulsion paint), which can reduce the cost of water-based paint.
Hubei Sanli Fengxiang Technology Co., Ltd. and China University of Petroleum (East China) have developed polymethoxydimethyl ether (DMMn) downstream of formaldehyde for many years. After the first generation with methylal and solid poly as raw materials and the second generation with formaldehyde and methylal as raw materials, they finally developed and pilot tested a new generation of DMMn production technology with methanol and formaldehyde as raw materials.
The process uses raw materials methanol and formaldehyde, passes through a new special specified bed reactor with special internal configuration developed by China University of Petroleum (East China), and then obtains the product through reactive distillation, coupled distillation, extractive distillation, pressure swing distillation and other technologies. The output can be produced in various combinations of DMM2, DMM3 ~ 4, DMM3 ~ 5 and DMM3 ~ 6, which can be flexibly adjusted according to the market and downstream conditions.
The main characteristics of this process: key core technology: the fixed bed continuous reactor with special internal structure has high mass transfer efficiency, fast reaction speed, no bed pressure drop, and different concentrations of formaldehyde can be fed; The system has high degree of integration, short process, low investment in plant construction, low operation cost and good economic effect.
Table 6 Consumption list of new generation DMMN production technology (taking 300,000 t / A as an example)
|4||工业用电Industrial electricity||9000万度/年90,000,000 kwh/A|
|5||饱和蒸汽Saturated vapor||82.5万 t/a825,000 t/a|

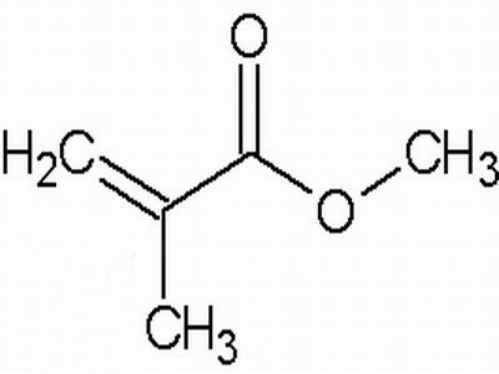

Methyl methacrylate is an organic compound, also known as MMA α- Methyl methacrylate, with molecular formula of CH5H8O2, molecular weight of 100.12, density of 994kg / m3, melting point of - 48 ℃, flash point of 10 ℃ and boiling point of 100-101 ℃, is a colorless liquid, soluble in ethanol, ether, acetone, etc., and its upper and lower explosion limits are 12.5% - 2.1%, volatile, flammable and explosive. It is an important chemical raw material and a monomer for the production of transparent plastic polymethylmethacrylate (PMMA). It is flammable, has strong pungent smell, has medium toxicity, reproductive toxicity and teratogenic effect, and should be avoided for long-term exposure. Its structure is shown in the right figure. The basic information and physicochemical properties of methyl methacrylate are as follows:
Table 7 Basic Information of MMA
|英文名English name||Methyl methacrylate（简称MMA）|
|别 称Alternative name||α-甲基丙烯酸甲酯α- Methyl methacrylate|
|CAS号 CAS No.||80-62-6|
|href="http://baike.baidu.com/view/1191131.htm" 蒸汽压Vapour pressure（25.5℃）||5.33kPa/25℃|
|闪点Flash point||10℃（开杯）(open cup)|
|沸点Boiling point||100-101℃ 24℃（4.3kPa）|
|水溶性Water solubility||溶于乙醇、乙醚、丙酮等Soluble in ethanol, ether, acetone, etc|
|外 观Appearance||无色液体Colorless liquid|
|安全性描述Safety description||易挥发，易燃volatile, flammable|
① Plexiglass industry
Methyl Methacrylate（MMA） is mainly applied in manufacturing of plexiglass, coating, lubricating oil additive, wood wetting agent, paper polishing agent and so on. It is not a material of organic chemicals, but also can be directly used as chemical product. As a material, it is used in PMMA production, as well as in PVC additive ACR, the second monomer applied in acrylic fiber production. Apart from that, MMA is widely used in adhesives, coatings, resins, textiles and papermaking industry.
② As a chemical product, MMA can be directly applied in leather, ion exchange resins, paper finishing agents, textile auxiliaries, leather processing agents, lubricating oil additives, crude oil pour point depressants, wood and soft wood wetting agents, motor coil impregnating agents, insulating pouring materials and plasticizers of plastic emulsion, floor polishing, unsaturated resin modified, and methacrylic acid higher esters.
③ MMA is also a organic synthetic monomer, and it is used in resin, plastic, coating, adhesive, scale inhibitor and dispersant, lubricant, wood wetting agent, motor coil penetrating agent, paper polishing agent, printing and dyeing auxiliaries and insulating pouring materials.

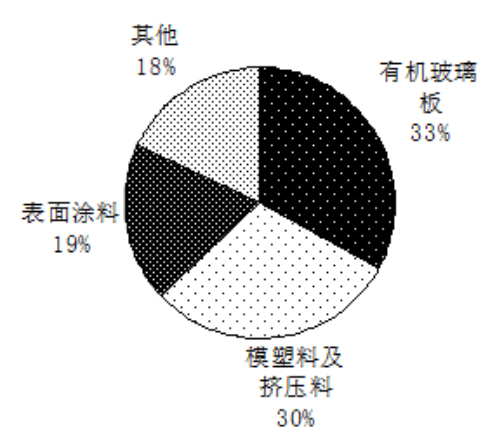

In China, the major demand for MMA is in PMMA production, PVC impact modifier and surface coating. MMA is mainly used in PMMA. With the rapid growing in advertising, furniture, construction, transportation and communication, the PMMA market expanded accordingly. In addition, due to the improvement of people’s living standard, plastic synthetic products will replace wood and steel products. The increase in demand for PVC products will drive the development of processing and impact modifier. At the same time, the proportion and output of high-grade water-based coatings will increase greatly, and the process formula will gradually integrate with environmental protection, so the demand for MMA will also increase gradually. MMA is used as raw material for ACR additives, and also for the production of acrylic emulsion. It is the key raw material for waterborne surface coatings. At the same time, MMA also has important applications in textile sizing, unsaturated polyester crosslinking agent, lubricant and artificial marble table.
In 2015, the domestic MMA production capacity was 685000 tons / year, the output was less than 400000 tons and the consumption was 590000 tons. In 2019, the domestic MMA production capacity is less than 1 million tons / year, the output reaches 800000 tons (the operating rate is calculated as 80%), the demand reaches 890000 tons, and the gap between supply and demand is 90000 tons. From 2016 to 2020, the supply and demand of MMA is as follows:
Table 8 Domestic co-ordination of supply and demand (Unit: 10 thousand tons)
|年份Year||产量Capacity||表观消费量Apparent consumption||缺口gap||自给率（%）degree of self-sufficiency (%)|
Up to now, only few countries in the world realize the industrial production with ethylene process. And due to the catalyst, this process has not be carried out in large scale. The majority of MMA production is based on traditional way, namely the ACH method and C4 method，and ACH method accounts for the higher proportion. The synthesis route of ACh method is complex with a long process flow, low yield after a multi-step reaction and high cost. Highly toxic hydrocyanic acid is used as raw material, and by-products such as ammonium sulfate and wastewater are harmful to the environment, which has been listed in the restricted use category by the state.
Through the operation with the research institute, SL CHEMTECH developed a reliable and clean coal-based production technology, which is an important extension of coal chemical industry and methanol downstream. It can make the best use of China's coal resources, and improve the MMA production technology in China. This process features in abundant, accessible and inexpensive raw material. The process is conducted in mild condition, thus avoid an oxidation under high temperature and high pressure. The discharge of three wastes is less than 50% of the existing mature process, so it is a clean and safe process. Through the cooperation with the research institute, SL CHEMTECH make a breakthrough in catalyst, which will be a slow deactivation and long service life of catalyst.
Methyl acetate and formaldehyde are the raw material in coal-based technology and it can be divided into three steps：methyl acetate and formaldehyde are first condensed to produce methyl acrylate, which is then hydrogenated to produce methyl propionate, and then methyl propionate is further condensed with formaldehyde to obtain methyl methacrylate. And it can be shown as follows:
CH3- COOCH3+HCHO → CH2=CH-COOCH3+H2O
CH2=CH-COOCH3+H2 → CH3CH2COOCH3
Compared with the ACH process and C4 process,the mainstream in domestic MMA production, this process does not produce waste acid and salt, and there is no introduction of highly toxic substances such as hydrocyanic acid in the production process. The overall system is clean and stable. Conventional bulk chemicals are used as raw material so there is no need to match to specific raw material origin. One of the two MMA EPC projects, which are both contracted by Hubei Sanli Fengxiang Technology Co,. Ltd., makes its completion of intermediate handover of installation. And it is estimated to produce qualified product in October, 2021. The unit will become the world's first 10 thousand tons industrial demonstration unit of coal-based MMA technology.
Table 8 MMA Unit Consumption
|序号S/N||名称NAME||规格SPECIFICATION||单耗t/t UNIT SONSUMPTION T/T|
